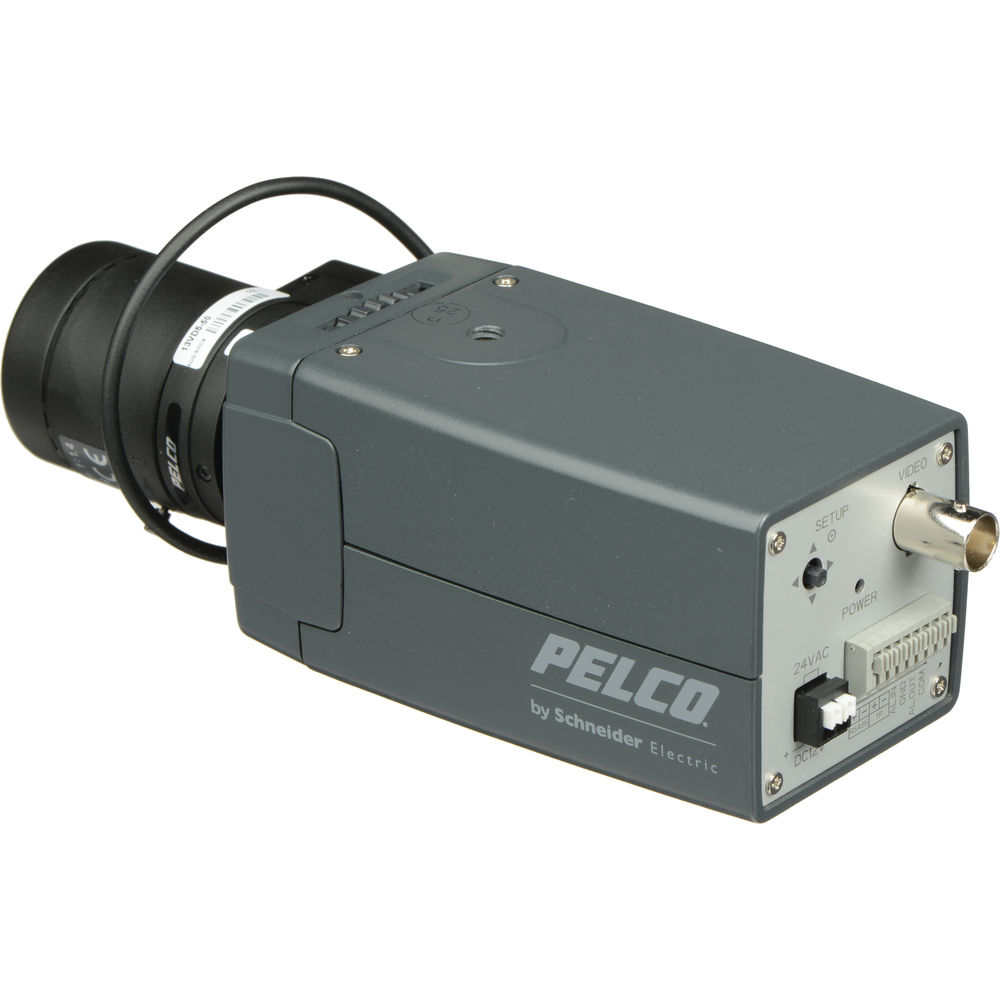

Pelco C20-DW-6 High Resolution Day/Night WDR Box Camera with 13VD5-40 Varifocal Lens
SKU: C20DW-6V50A
In Stock- 1-Year Warranty
- Free ship $100+
- 7-Day Returns
Key Features
- Imaging Device: Sony 1/3" Super HAD CCD II 960H
- Signal Processing: Sony new digital signal processor Effio-E
- Dynamic Range: 120 dB
- Day/Night Operation: Day: Infrared (IR) cut filter / Night: BK-7 glass, same optical displacement as day mode
- Picture Elements: NTSC 976 (H) x 494 (V), approximately 480k
- Sensing Area: 0.19 x 0.12" (4.7 x 3.5 mm)
- Scanning System: NTSC 525 lines, 2:1 interlace
- Synchronization: AC line lock/Internal
- Horizontal Resolution: 650 TVL
- Auto-Iris Lens Support: DC drive
- Electronic Shutter: Auto, 1/60 to 1/100,000 sec / Manual, 1/60 to 1/10,000 sec
- Signal-to-Noise Ratio: 48 dB (>52 dB by parameter adjustment)
- Automatic Gain Control: Off/on up to 36 dB, 16 levels configurable
- Backlight Compensation: Yes
- White Balance: ATW/push lock/manual/anti-CR/user2/user/push
- Color Correction: With white balance
- Video Output: 1 Vp-p, 75 ohms
- Auto White Balance Range: 2,500 to 9,500°K
- Digital Noise Reduction (DNR): 3D
- Color Correction: Adaptive
- Privacy Zone: Yes, 15 sizable windows
- Motion Detection: Yes, four areas sensitivity selectable
- Camera Titles: Yes, up to 20 characters
- Digital Zoom: 255X
- Image Stabilization: Yes (under 10Hz)
- Scene Analytics: Yes (defocusing, camera tamper)
- Remote Access: RS-485 and Coaxitron
You may also like
More from Security Cameras
cameras
Pelco Esprit ES30 PTZ 23x Zoom Camera System ES30CBW18-2W
cameras
Digital Watchdog MEGApix DWC-MB45WiATW IVA 5MP Outdoor Network Bullet Camera with Night Vision
cameras
Samsung Hanwha QND-7032R 4MP Night Vision Dome IP Security Camera with Built-in Mic, 6mm Fixed Lens
cameras
Samsung Hanwha XND-6081REV 2MP Night Vision Indoor Dome IP Security Camera with PoE Extender
cameras
Samsung Hanwha XNV-C8083R 6MP Night Vision Outdoor Dome IP Security Camera with AI, 4.4~9.3mm Motorized Lens
cameras
Digital Watchdog DWC-MPV75Wi4TW 5MP Night Vision Outdoor Dome IP Security Camera with 4.0mm fixed lens
cameras
Samsung Hanwha XNV-6083R 2MP Night Vision Outdoor Dome IP Security Camera, 2.8~12mm Motorized Lens
cameras
Samsung Hanwha ANV-L6023R 2MP IR Outdoor Flateye Dome IP Security Camera, 3.6mm Fixed Lens, White
Product Overview
The C20-DW-6 High Resolution Day/Night WDR Box Camera with 13VD5-40 Varifocal Lens (NTSC) from Pelco is a fully featured digital CCD camera. Its WDR technology provides 120dB dynamic range and captures excellent images over a range of lighting conditions, including extreme backlight conditions. The camera’s day/night technology allows it to capture high-quality images in low-light conditions.
The camera uses a removable IR-cut filter to switch between color and B&W modes as environmental lighting conditions change and as the need for infrared sensitivity is realized. It offers 650 TVL resolution and 0.13 lux minimum illumination.
This day/night camera features autosensing power (24VAC or 12VDC with AC line lock or internal synchronization) and automatic gain control (AGC). It also features automatic white balance (AWB) for difficult lighting situations, digital noise reduction (DNR), and backlight compensation (BLC) that adjusts the picture to prevent objects from appearing dark because of a strong backlight.
