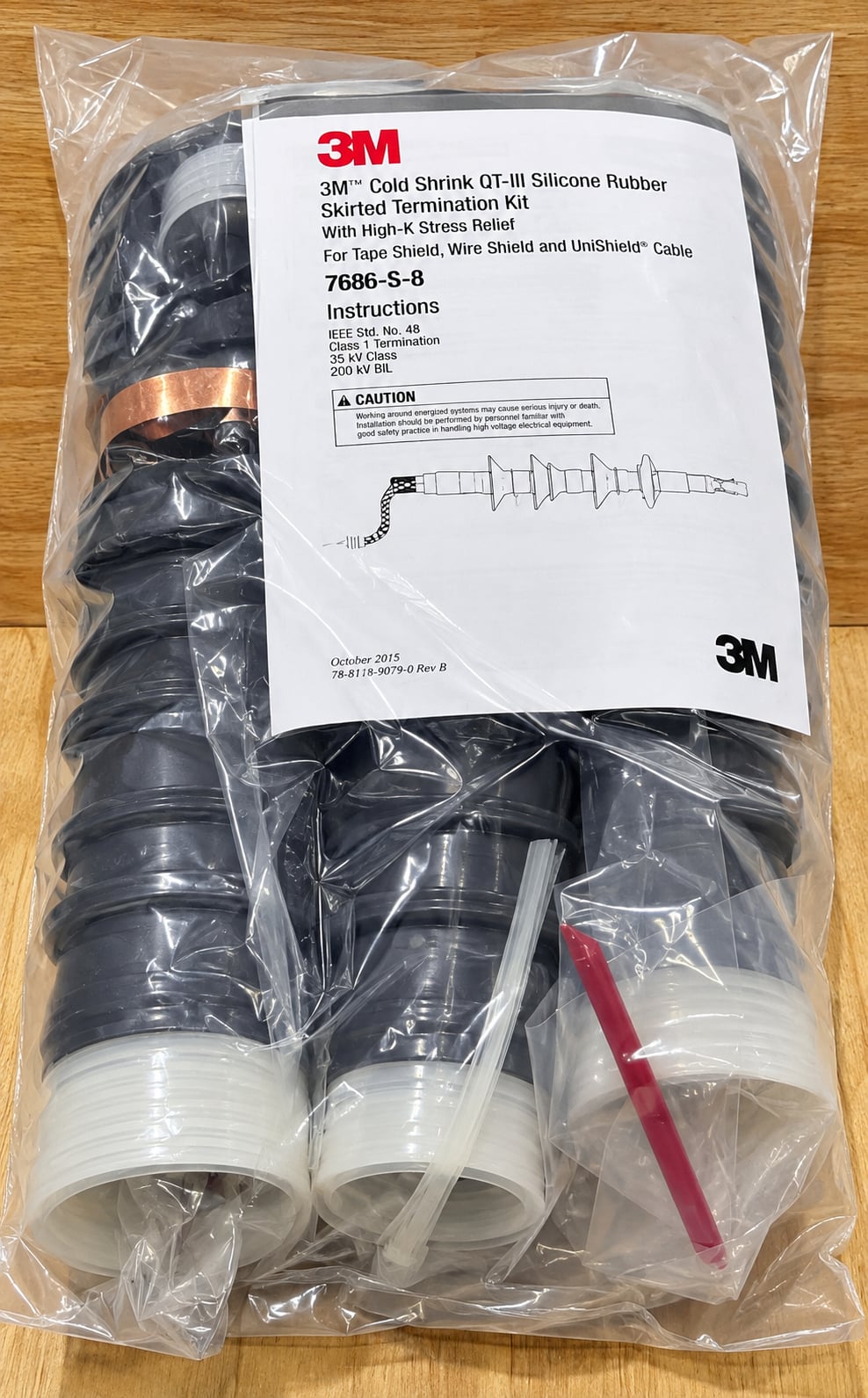

3M Cold Shrink QT-III Termination Kit 7686-S-8
SKU: 7686-S-8
In Stock- 1-Year Warranty
- Free ship $100+
- 7-Day Returns
Key Features
- Suitable for outdoor applications
- Provides a void-free seal to tape shield
- High dielectric-constant material
- White Silicone Rubber
You may also like
More from Accessories
accessories
Turing Video TP-PCWM SMART Series PTZ Wall Mount
accessories
Assa Abloy HES 5200-12/24D-630 Electric Strike
accessories
6PC 10Channel Call All Wireless Intercom System for Home Offices Room Talking
accessories
GENERAL ELECTRIC TKMMOMA1 Circuit Breaker Operating Mechanism Mod. 3 Used
accessories
Acme TP530193S Transformer 1Ph 37.5Kva 240X480-120/240
accessories
AXIS F4105-LRE 2nd Generation Discreet Mini Dome Sensor with IR - 02364-001
accessories
Vivotek AL-237 DC-iris Security Camera Lens- 4.1~9mm , F1.6 CS-Mount
accessories
Samsung Hanwha SLA-T4680DA 2MP Indoor Door Jamb Lens Module, Black
Product Overview
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
Each kit contains sufficient quantities of material to make a three-phase termination. The termination assemblies consist of a skirted insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note: Lugs need to be ordered separately.
